FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving. With its efficient design, FusionServer 5288 V6 ensures excellent computing performance and provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs. The 5288 V6 can be configured with two Intel Xeon scalable processor, 32 DDR4 DIMMs, and 44 3.5-inch + 4 NVMe SSDs in a 4 U space. Integrates patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and can be configured with FusionDirector full-lifecycle management software, effectively reducing OPEX and improving ROI.

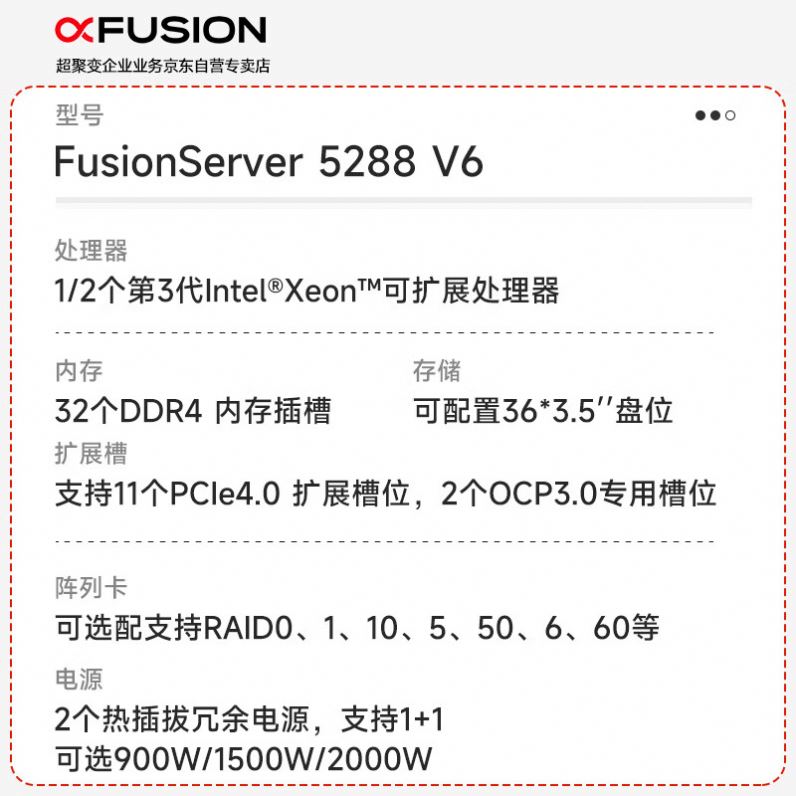

| Server Model | FusionServer 5288 V6 |
| Form Factor | 4U Rack Server |
| Processors | 1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series) , up to 270W |
| Local Storage |
Various hard disk configurations are supported. The hard disks are hot swappable: • 36 to 44 3.5-inch SAS/SATA HDDs and 4 NVMe SSDs • 24 x 3.5-inch SAS/SATA front hard disks • 4 3.5-inch SAS/SATA internal hard disks • 16 3.5-inch SAS/SATA hard disks and four 2.5-inch SAS/SATA/NVMe rear hard disks • 12 3.5-inch SAS/SATA disks and eight 2.5-inch rear hard disks (4 x 2.5″ HDDs + 4 x 2.5″ SAS/SATA/NVMe) Flash storage: • Dual M.2 SSDs |

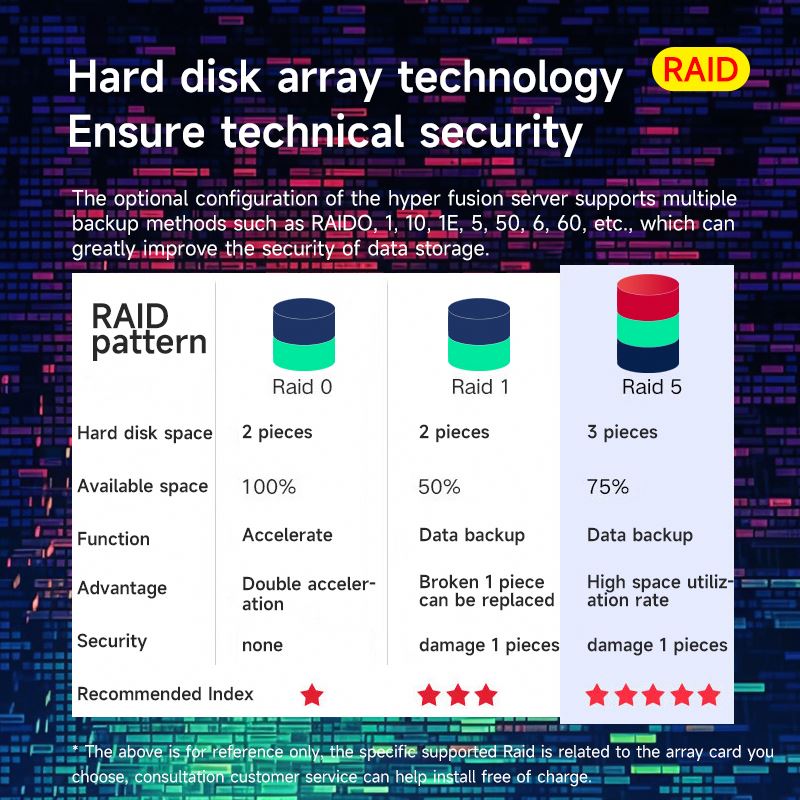

| RAID support | Supports RAID 0, 1, 5, 50, 6, and 60, cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web-based remote configuration, and multiple network expansion capabilities |
| Network | OCP 3.0 NIC The two FLEX I/O card slots support two OCP 3.0 NICs, which can be configured as required Supports multiple OCP 3.0 NICs Supports hot swap |
| PCIe Expansion | A maximum of 11 PCIe 4.0 slots, including one dedicated PCIe slot for the RAID controller card, two dedicated FLEX I/O slots for OCP3.0, and eight standard PCIe 4.0 slots |
| Chip Set | Intel® C621A |
| Fan Modules | Four hot-swappable fans, supporting N+1 redundancy |
| Height X Width X Depth | Chassis dimensions: 175 mm x 447 mm x 790 mm |
| Power Supply Units |
2 redundant hot-swappable PSUs are configured in 1+1 redundancy mode. The optional specifications are as follows: • 900W AC Platinum/Titanium power supply (Input: 100–240 V AC or 192–288 V DC) • 1500 W AC Platinum PSU • 1000 W (input: 100 V AC to 127 V AC) • 1500 W (input: 200–240 V AC or 192–288 V DC) • 2000 W AC Platinum PSU • 1800 W (input: 200–220 V AC or 192–200 V DC) • 2000 W (input: 220–240 V AC or 200–288 V DC) |
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation. We provide: Computing servers, Network storage, Network switches, CPU, RAM, HARD DRIVES, and other accessories.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
